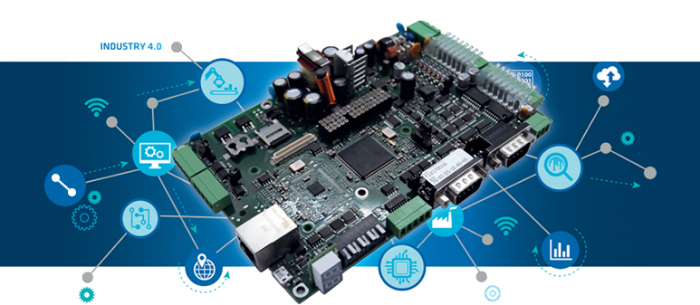

GaIA Controller

GaIA Controller

• CHARACTERISTICS

  • STM32H7 Dual Core
  • 32 bit Arm Cortex-M7 @480 Mhz
  • 32 bit Arm Cortex-M4 @240 Mhz
  • 2 MB Flash + 1 MB RAM
  • 12 bit A/D Converter
• 2 x RS232/RS485 optoisolated serial interfaces
• 1 x 10/100 Mbit/s Ethernet interface w/Single or dual Ethernet connector and high-speed switch.
• 2 x CAN/CAN-FD optoisolated interfaces
• 1 x USB OTG Full Speed interface1 x Micro SD-CARD
• 8 x 24V Digital Inputs w/status LEDs and encoder inputs
• 8 x 24V Digital Outputs w/status LEDs, blow fuse and short circuit alarm
• DIP switch, 2 x 7 seg. display + 4 status LEDs24 V insulated power supply with RF filter and
• Low Voltage indication alarm1 x Lithium cell for RAM backup
• I/O Bus Expansion Connector
• Fieldbus expansion connector for EtherCAT, Profibus, Profinet
• Expansion connector for WiFi/Bluetooth or 4G interface

• CERTIFICATIONS: CE, UL

• OPTIONS AND EXPANSIONS

• • DIGITAL/ANALOG I/O EXPANSION
    • 16 x 24V Digital Inputs with status LEDs
    • 16 x 24V Digital Outputs with status LEDs
    • 8 x analog inputs (0...10V, +10/-10V, 4...20mA)
    • 1 x analog input for temperature sensor PT1000
    • 1 x quadrature encoder input

• • DIGITAL I/O EXPANSION
    • 16 x 24V Digital Inputs with status LEDs
    • 16 x 24V Digital Outputs with status LEDs
    • Up to 4 stackable I/O interfaces

• • ANALOG I/O EXPANSION
    • 8 x analog inputs (0...10V, +10/-10V, 4...20 mA)
    • 1 x analog input for temperature sensor PT1000 Industrial Ethernet EXPANSION
    • EtherCAT, Profinet, Ethernet/IP, Ethernet PowerLink

• • WiFi/4G IoT EXPANSION
    • WiFi/Bluetooth or 4G Modem
    Other expansions on request

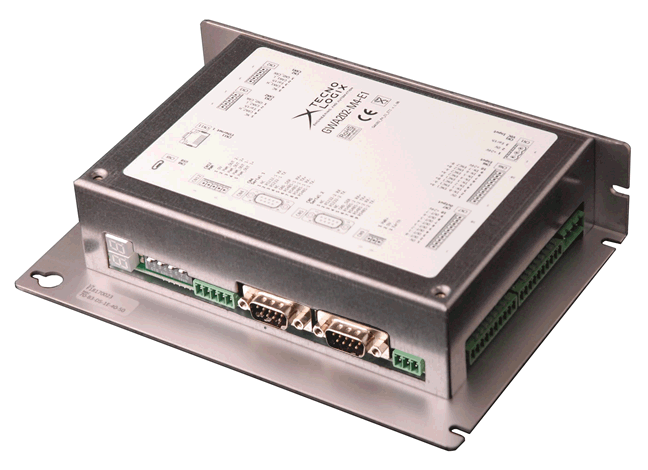

• DIMENSIONS: Metal box 180 x 120 x 50 mm.
