All applications run on the device, a PC is only needed for configuration or stimulation/visualization of data, as the actual intelligence – for e.g. the transport protocols – is outsourced to the embedded platform.
HMS provides with Ixxat ACT (Advanced Configuration Tool) an easy to use Windows-based tool enabling customers to configure the device via drag-&-drop. Most use-cases can be solved by using ACT Freeware (free of charge).
Application examples – How PC interfaces are used
Mobile USB-to-CAN interface for easy CAN (FD) bus access enabling configuration, service and analysis  | Powerful CAN (FD) plug-in boards enable connection of test/simulation system to automotive bus systems or devices
| Wireless connection to automotive bus systems for flexible analysis, configuration and test
|

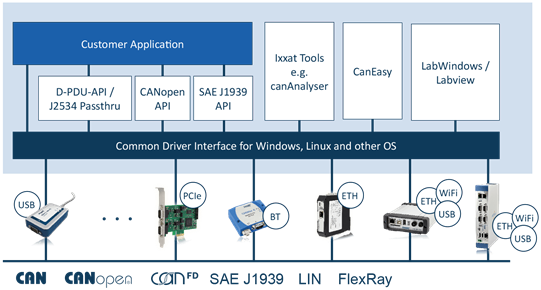

Software support for the Ixxat PC interfaces
Passthru J2534
Optionally, the Ixxat PC interfaces do support the PassThru (SAE J2534) API, enabling easy connection to various software testing applications being used in the after sales support of passenger vehicles.
D-PDU-API
Optionally, the Ixxat PC interfaces do support the D-PDU-API (ISO 22900-2) under Windows and Linux enabling usage with various third party applications supporting this standard.

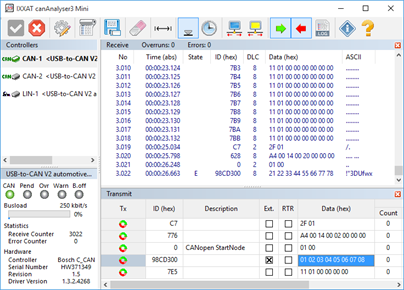

Analysis tools - canAnalyser Mini and CanEasy
Besides the canAnalyser Mini, which is part or the VCI driver package (free of charge), the interfaces are also supported by the powerful analysis/simulation solution CanEasy.
TECHNICAL SPECIFICATIONS
Feature table – fieldbus support and options
| CAN Interface | Type | On-board µC | Galv. Isolated | CAN HS | CAN LS | CAN FD | LIN | Further Options |
| CANnector | Ethernet/USB | ✔ | ✔ | 8 | 4 | 2 | WiFi/EtherCAT | |
| CAN-IB640/PCIe | PCIe | ✔ | ✔ | 1-4 | 1-4 | 1-4 | ||
| CAN-IB600/PCIe | PCIe | ✔ | ✔ | 1-2 | 1-2 | |||
| CAN-IB500/PCIe | PCIe | ✔ | 1 | 1 | ||||
| CAN-IB200/PCIe | PCIe | ✔ | option | 1-4 | 1-4 | 0-4 | Low Profile | |
| CAN-IB100/PCIe | PCIe | option | 1-4 | 1-4 | Low Profile | |||
| CAN-IB520/PCIe Mini | PCIe Mini | ✔ | 1 | 1 | ||||
| CAN-IB120/PCIe Mini | PCIe Mini | option | 1-2 | |||||
| CAN-IB630/PCIe 104 | PCIe 104 | ✔ | ✔ | 2 | 2 | |||
| CAN-IB230/PCIe 104 | PCIe 104 | ✔ | ✔ | 2/4 | 0-1 | 0-1 | ||
| CAN-IB130/PCIe 104 | PCIe 104 | ✔ | 1-2 | |||||
| PC-I 04/104 | PC104 | option | 1-2 | |||||
| CAN-IB810/PMC | PMC | ✔ | ✔ | 2 | 0-2 | 2 | 0-2 | |
| CAN-IB410/PMC | PMC | ✔ | ✔ | 2-4 | 2-4 | 0-2 | ||
| CAN-IB400/PCI | PCI | ✔ | ✔ | 1-4 | 1-4 | 0-4 | ||
| CAN-IB300/PCI | PCI | ✔ | 1-4 | 1-4 | ||||
| USB-to-CAN FD | USB | ✔ | ✔ | 1-2 | 1-2 | 1 | ||
| USB-to-CAN V2 | USB | ✔ | ✔ | 1-2 | 0-1 | 0-1 | ||
| USB-to-CAN V2 Plugin | USB | ✔ | ✔ | 1-2 | 0-1 | 0-1 | ||
| simplyCAN | USB | ✔ | ✔ | 1 | ||||
| CAN@net NT 200/420 | Ethernet | ✔ | ✔ | 2-4 | 0-2 | |||
| CAN@net NT 100 | Ethernet | ✔ | ✔ | 1 | ||||
| CAN@net II/VCI | Ethernet | ✔ | ✔ | 1 | ||||
| CANblue II | Bluetooth | ✔ | ✔ | 1 |

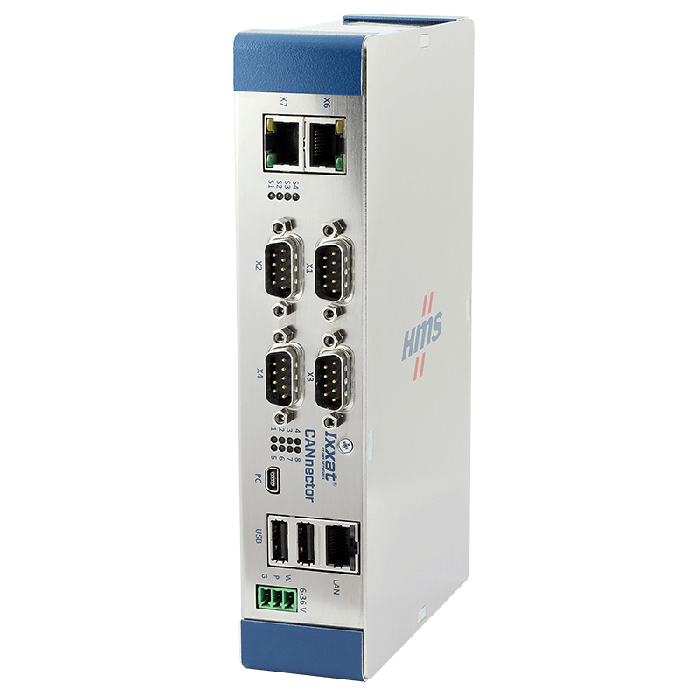

- DIN rail mountable
- Industrial Ethernet support (like EtherCAT)
- Up to 8 CAN (FD) channels in one device
- CAN listen only (CAN RX) for data logging use-cases
- Only a few µs delay of frames in classical gateway applications
- Switch-on CAN (self switch on in case of any CAN communication or a defined message)
- Up to 4 kV galvanic isolation
- Compatible to the Ixxat CAN@net Generic Ethernet protocol and CAN@net NT protocol
| Order number | Product name | Galvanic isolation | FlexRay A/B | CAN interface count (total) | CAN high speed | CAN low speed | CAN FD (B) | LIN | EtherCAT (slave) | Analog in | Digital in/out (A) (D) | Digital in/out (A) (E) | Ethernet 10/100 Base-T | USB 2.0 device | USB 2.0 host | SDHC slot | Internal WiFi |
| 1.01.0091.01000 | CANnector Log * | yes | 0 | 6 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 2 | 1 | 1 | 2 | 0 | 0 |
| 1.01.0091.02000 | CANnector Range ** | yes | 0 | 6 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 2 | 1 | 1 | 2 | 0 | 0 |
| 1.01.0091.03000 | CANnector Bridge ** | yes | 0 | 6 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 2 | 1 | 1 | 2 | 0 | 0 |
| 1.01.0091.00000 | CANnector S | yes | 0 | 6 | 6 | 0 | 2 | 2 | 0 | 0 | 0 | 2 | 1 | 1 | 2 | 0 | 0 |
| 1.01.0091.00010 | CANnector L | yes | 0 | 8 | 8 | 0 | 4 | 2 | 0 | 0 | 0 | 2 | 1 | 1 | 2 | 0 | 0 |
| 1.01.0091.00100 | CANnector S with EtherCAT | yes | 0 | 6 | 6 | 0 | 2 | 2 | 1 | 0 | 0 | 2 | 1 | 1 | 2 | 0 | 0 |
| 1.01.0091.00110 | CANnector L with EtherCAT | yes | 0 | 8 | 8 | 0 | 4 | 2 | 1 | 0 | 0 | 2 | 1 | 1 | 2 | 0 | 0 |
(A) Input or output per software switchable
(B) 6/8 CAN in total, thereoff max. 2/4 CAN-FD capable
(D) 4 digital inputs/outputs (5 V TTL)
(E) digital inputs (max. 34 V), digital outputs (max. 34 V, 1 ampere)
* CANnector Log – based on CANnector S, ready2use with a basic logging configuration and a 16GByte USB storage device
** CANnector Range/Bridge – based on CANnector S, ready2use with a basic range extending or bridge configuration
