HOW IT WORKS

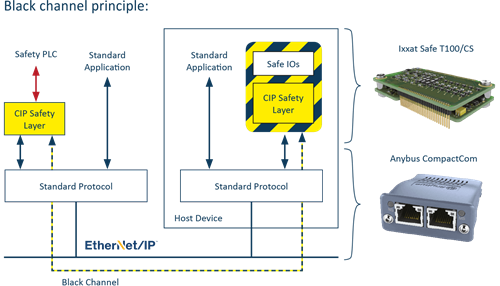

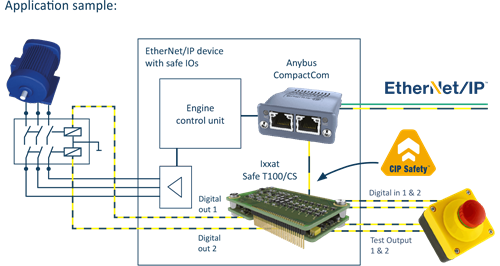

BLACK CHANNEL PRINCIPLE
The Ixxat Safe T100 is used in customer devices together with a communication module of the Anybus CompactCom series, which is used to implement the unsafe bus connection. Safety communications use the black channel principle through the Anybus CompactCom communication module. For CIP Safety, for example, the communication module carries out the tasks of a EtherNet/IP Adapter.
EASY CERTIFICATION
A comprehensive safety manual is provided for device certification. This describes all the needed integration and verification steps to achieve the TÜV certification which greatly reduces the time-to-market. Especially the clear separation of safety-relevant functions from the unsafe functions of the end device by the precertified Ixxat Safe T100 plug board is a great help in this situation.
DEVELOPMENT KIT

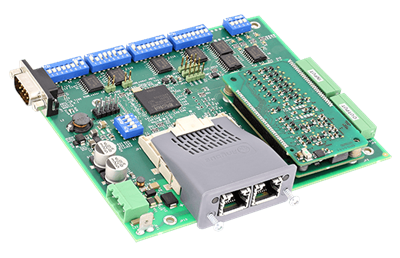

The Safe T100 comes with development kits for evaluation purposes. These consist of a base board with a EtherNet/IP Anybus CompactCom module and a host CPU, along with the suitable safety module with easy to access safety I/O signals. The configuration of the Safety I/Os is done via the fieldbus connection.

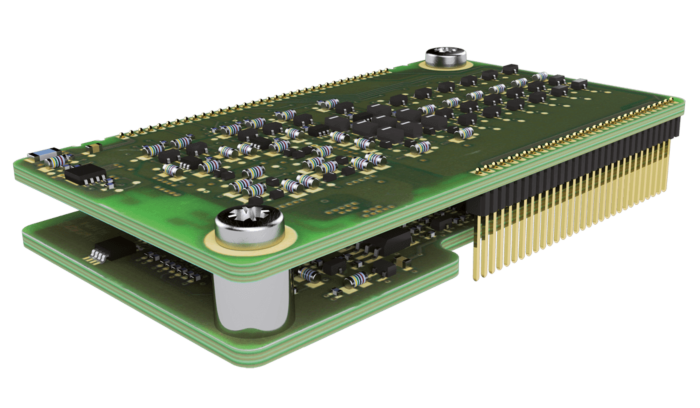

| Supported standards | CIP Safety (Volume 5, V2.14) |
| Digital inputs | 3 x dual channel, configurable with filter and monitor functions |
| Digital outputs | 1 x dual channel, configurable |
| Safety Conformance Level | max. SIL 3, Performance Level e (PLe) category 4 |
| Power supply | 24 V DC (SELV/PELV), 3.3 V DC |
| Operating temperature | -30 °C to +68 °C |
| Dimensions | 70 x 40 x 15 mm |
- All necessary functions and methods to achieve SIL-3/Performance Level e (PLe) on one board — simplifies customer board design
- IOs configurable for single and dual channel use
- Pre-certified concept and hardware for easy re-certification of the final device
- Provision of full documentation set including TÜV type approval
- Direct connectivity to Anybus CompactCom module for non-safe fieldbus communication - safe and non-safe communication on the same wire
| Order code | Description |
| 1.01.0301.00001 | Ixxat Safe T100/CS |
| 025800-B | T100 Development Kit for Ixxat Safe T100/CS |
Tecnologix offers support which is directly handled by development team. Do not hesitate to get in touch with our experts.
Just ask here
