IXXAT USB-to-CAN FD


2 x CAN FD / CAN, 1 x LIN

The USB-to-CAN FD has – depending on the device variant – up to two channels, which support three switchable operation modes: ISO CAN FD, non ISO CAN FD and CAN High-Speed. The automotive variant provides also one LIN channel.

The USB-to-CAN FD is available in different variants – compact, automotive and embedded. The compact variant has one switchable CAN / CAN FD channel with a D-SUB 9 plug. The automotive variant has two switchable CAN / CAN FD channels with RJ45 connectors. Adapter cables to D-SUB 9 plugs are included in the scope of delivery. The USB-to-CAN FD embedded is designed without a housing, it comes with a slot bracket and a USB cable for installation into a computer. USB-to-CAN FD Compact USB-to-CAN FD Automotive USB-to-CAN FD Embedded

Automotive RJ45
Automotive RJ45
Embedded
Embedded

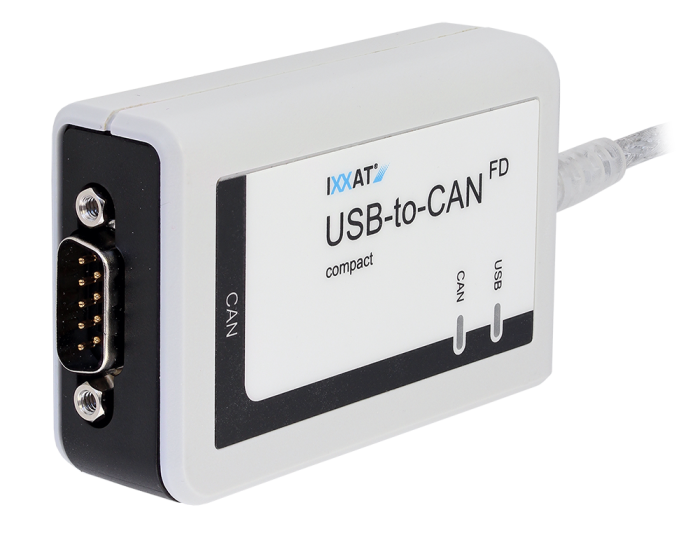

Compact D-SUB 9
Compact D-SUB 9


LIN (automotive variant)
LIN communications are supported in either LIN master or LIN slave mode. As LIN slave, the interface responds automatically to master requests it receives. The response data is updated through the PC API using a buffer. In master mode, the master calls are processed by the PC application. Incoming LIN messages are forwarded to the application with a timestamp, master request, response, and status information.

HIGH PERFORMANCE AND FLEXIBILITY

By using powerful hardware and connecting over USB 2.0 Hi-Speed (480 MBit/sec), the USB-to-CAN FD interfaces achieve very high data throughput with minimum latency and low power consumption. This allows them to provide the reliable, loss-free transmission and receipt of messages in CAN FD and CAN networks at high transmission rates and bus load. The messages are also timestamped and can be filtered and buffered directly in the USB-to-CAN FD. Due to its extremely interesting price and compact size, the USB-to-CAN FD interface is ideal for use in series products and in combination with the canAnalyser for development, service, and maintenance tasks. Its newly developed, rugged housing permits easy customer-specific adaptation (custom design / brand labeling). All USB-to-CAN FD variants are supported by the IXXAT driver packages and higher layer protocol APIs as well as by the IXXAT tool suite. A detailed software support overview can be found
