ARM® KEIL® MDK

ARM® Keil® MDK is the industry-leading standard software development solution for ARM Cortex® microcontrollers. For Cortex-M devices, the new MDK-Plus edition adds comprehensive middleware for applications that require File System, Graphics, TCP/IP Networking, or USB Device interfaces.

DOWNLOAD FLYER➦

MDK Microcontroller Development Kit

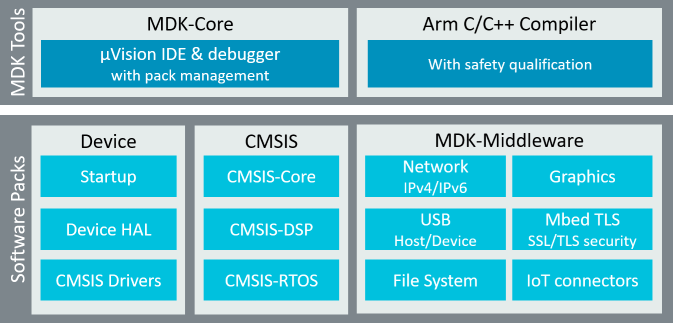

ARM® Keil^® MDK is the most comprehensive software development solution for Arm^®-based microcontrollers and includes all components that you need to create, build, and debug embedded applications.

MDK-Core is based on µVision (Windows only) with leading support for Cortex-M devices including the new Armv8-M architecture.MDK includes two Arm C/C++ Compilers with assembler, linker, and highly optimize run-time libraries that are tailored for optimum code size and performance.

Software Packs may be added any time to MDK-Core making new device support and middleware updates independent from the toolchain. They contain device support, CMSIS libraries, middleware, board support, code templates, and example projects.

The IPv4/IPv6 networking communication stack is extended with Mbed™ TLS to enable secure connections via the Internet.

MDK Editions

Product Components

License Types

Node-Locked:
A node-locked license allows using MDK by exactly one person on a maximum of two computers (single-user). No network connection required.

FlexLM Floating:
A FlexLM License allows developers to use MDK on multiple computers. A network connection to check out a FlexLM license is required.

MDK receives MadeForSTM32 label

Arm Keil MDK has received the label "MadeForSTM32" by STMicroelectronics. While MDK always had outstanding support for STM32-based devices.

Arm Keil MDK supports more than 1700 devices from STMicroelectronics and offers a free-to-use MDK for STM32F0, STM32G0, and STM32L0 that helps their mutual customers to develop their embedded application faster. The excellent support of STM32CubeMX helps to set up your device using graphical tools from STMicroelectronics and exchange this data with Arm Keil MDK to be able to use our advanced debug features to minimize development time.

The Functional Safety Run-Time Systems works seamlessly with STMicroelectronics' X-CUBE-STL. Download their application note 326 to learn how to use both components together in your functional safety application.

Compare MDK Editions

Feature	MDK Editions
Feature	Professional	Plus	Essential
	All-in-one solution including Middleware	Supports all microcontroller cores and Middleware	Supports selected Cortex-M
Lycense Type
Node Locked	Perpetual OR 1 Year Limited	Perpetual OR 1 Year Limited	Perpetual OR 1 Year Limited
FlexLM Floating	Perpetual OR 1 Year Limited	Perpetual OR 1 Year Limited	Perpetual OR 1 Year Limited
µVision^®
IDE with Editor, Pack Installer	V	V	V
Debugger	V	V	V
Fixed Virtual Platforms Simulation Models	V	x	x
Arm Virtual Hardware	V	x	x
ARM^® C/C++ Compiler
Compiler, Linker, Libraries, and Utilities	V	V	V
Functional Safety Support and Extended Maintenance	V	x	x
DeVice Support
ARM Cortex-M0/M0+/M3/M4/M7	V	V	V
ARM Cortex-M23/M33/M35P/M55	V	V	V
ARMV8-M Architecture Models including FastModel	V	x	x
ARM SecurCore^® SC000, SC300	V	V	x
ARM7^™, ARM9^™, ARM Cortex-R4	V	V	x
RTOS and Middleware
CMSIS-RTOS RTX (with full source code)	V	V	V
Middleware IPV4 Network, USB DeVice, File System, Graphics	V	V	x
Middleware IPV6 Network, USB Host, mbed TLS	V	x	x
Debug and Trace Support
ULINK Debug Adapters ULINK-ME, ULINK2, ULINKplus, ULINKpro	V	V	V
Trace Streaming Instruction Trace, Embedded Trace Buffer, Micro Trace Buffer	V	V	V
AdVanced Analysis Tools Code CoVerage, Performance Analyzer, Execution Profiler, Logic Analyzer	V	V	V
Support and Maintenance
Updates and Technical Support Included	12 Months	12 Months	12 Months

Specifications

System Requirements

All MDK editions are designed for 32-bit and 64-bit variants of Microsoft Windows and have the same system requirements.
Verify that your computer at least meets the minimum system requirements before you install any Keil software development product.

MDK

Minimum Hardware Requirements

1 GHz processor
1 GB of system memory (RAM)
2 GB of available disk space

Recommended Hardware Requirements

2+ GHz processor
4 GB of system memory (RAM)
5 GB of available disk space
2 Mpbs or higher Internet connection for software activation, product updates and online services like the PackInstaller

Supported Operating Systems

32-bit and 64-bit variants of Microsoft Windows are supported:

Windows 10 Home
Windows 10 Pro
Windows 10 Enterprise
Windows 10 Education

Windows 8.1
Windows 8.1 Pro
Windows 8.1 Enterprise
Windows 8
Windows 8 Pro
Windows 8 Enterprise

Software will be tested against the latest revision supplied by Microsoft. Beta Releases or Release Candidate versions of Windows are not recommended for productive use.

Note:

Support for 32-bit Microsoft Windows will be deprecated in Q3/2018. Please make sure to switch to a 64-bit Microsoft Windows operating system before then.

Webinar

Periodicamente Tecnologix offre corsi e webinar tecnici sui prodotti sponsorizzati.

Introduzione a MDK-Middleware

Guarda la registrazione dei webinar, clicca qui in basso

Tecniche di debug avanzato con ARM® Keil® MDK

Guarda la registrazione dei webinar, clicca qui in basso

Video

Setup Keil MDK

This video shows how to download and install Arm Keil MDK. It explains how to run example projects using the built-in simulator and real target hardware. Learn how to enable the built-in MDK-Professional license to gain access to the MDK-Middleware that provides network, USB, graphics, and file system software components. Watch how to debug the applications using the µVision debugger and its dedicated debug windows.

Technical Support

Tecnologix offers support which is directly handled by development team. Do not hesitate to get in touch with our experts.
