PORT ANSI-C CANopen Library

Description

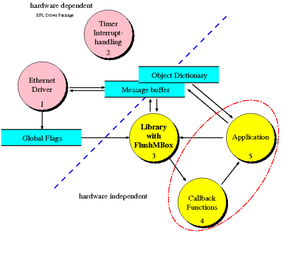

The CANopen Library consists of a hardware independent and a hardware dependent part that communicate with message queues. The hardware dependent part consists of controlling software for the CAN controller and timer functions. A detailed description can be found in the CANopen Driver Package.

The application communicates only with the hardware independent part of the CANopen Library. That way it is possible to exchange drivers without any influence on the functionality of the application. The initialization of CANopen services is done with function calls within the application. During the execution of the application the CANopen Library executes all necessary communication tasks autonomously and informs the application about CANopen messages with the help of callback functions.

Communication requests from other devices as well as necessary periodical tasks and time out monitoring is handled within the CANopen Library. All requests are proved for correctness (access rights, data types etc.). The application is notified after completion of the communication and occurrence of failures, respectively, through service oriented callback functions. In these callback functions appropriate actions can be carried out from the application.

The object directory is designed to contain references to the variables in the user application. Consequently it is possible to take over variables from an existing software without any changes in the object dictionary.

The high degree of scalability of the CANopen Library is of particular importance for devices with limited resources. On one hand, this is achieved by the modularity in individual service groups, like sdo.c, pdo.c, ...sync.c, and on the other hand, through the use of compiler directives in the respective modules.

Thus, the code size is proportional to the utilized CANopen services.

Furthermore, variants of the CANopen Library for the support of multiple CAN lines (max.255) are available. Therefore it is possible to serve several independent CAN networks on devices without an operating system or with an operating system. The usage of an operating system requires it to provide means of resource protection mechanisms. Each line holds its own object directory and can be used as master and slave, respectively, independent of the other lines. Owing to the separation of the protocol stack and the hardware drivers, the individual lines can also be operated with different CAN controllers.

Delivery of the CANopen Library comprises different example programs that describe the usage of the various CANopen services. All examples contain a complete implementation of a CANopen device including the object directory as well as application code. These are ready to be compiled and run.

Among the detailed documented source code there is the reference manual and an a printed user manual, numbering 200 pages, as documentation of the CANopen Library available.

The CANopen Library is constantly improved and adopted to customer requirements. In order to keep up with the latest version of the CANopen Library port provides its customers an update service.

For development, test and initial operation of CANopen devices port provides a comprehensive tool chain. The creation of the object directory is simplified with the CAN- open Design Tool (CANopen Design Tool Light version belongs to the scope of delivery).

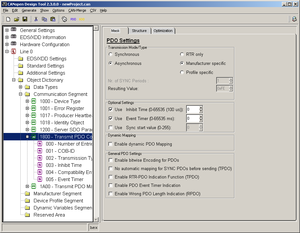

The graphical CANopen Design Tool is available for the creation of the object directory, the electronic data sheet (EDS file) and for the documentation of the device in HTML or text format.

The CANopen Device Monitor can be utilized for commissioning, but also for the implementation and test phase. As a fully implemented CANopen master the CANopen Device Monitor with a graphical user interface assures access to all services in the network and also allows analysis of the bus traffic.

For the development of CAN application monitoring and analyzing the CAN bus traffic is essential. The service oriented display of CANopen messages of the CAN-REport allows easy and quick interpretation of CANopen messages.

Besides the communication objects of the CiA 301 several application objects in different device profiles are also specified in CANopen. These definitions guarantee a defined behavior of the corresponding device class and enable the interchangeability of CANopen devices.

For these different device profiles port provides extension modules as an add-on to the CANopen Library. These modules allow the customization of an application based on the CANopen standards.

All modules are available in ANSI-C source code and can be used with all versions of the CANopen Library.

Please have a look at the information of the data sheet CAN- open-Library Extension modules.
