Port POWERLINK Protocol Stack

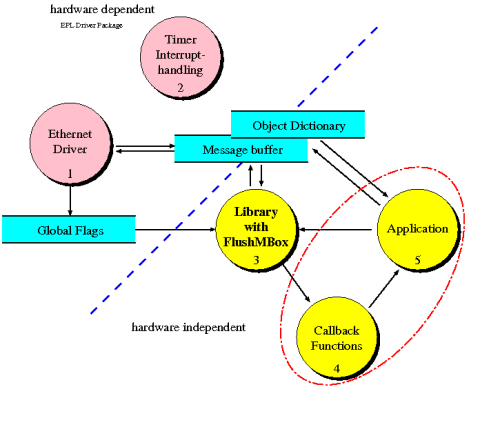

The POWERLINK Library consists of a hardware independent and a hardware dependent part that communicate with message queues. The hardware dependent part consists of controlling software for the Ethernet MAC controller and timer functions.

The application communicates only with the hardware independent part of the POWERLINK Library. That way it is possible to exchange drivers without any influence on the functionality of the application. The initialization of POWERLINK services is done with function calls within the application. During the execution of the application the POWERLINK Library executes all necessary communication tasks autonomously and informs the application about successful received POWERLINK messages with the help of callback functions.
Communication requests from other devices as well as necessary periodical tasks and time out monitoring is handled within the POWERLINK Library. All requests are proved for correctness (access rights, data types etc.). The application is notified after completion of the communication and occurrence of failures, respectively, through service oriented callback functions. In these callback functions appropriate actions can be carried out from the application.

The object directory is designed to contain references to the variables in the user application. Consequently it is possible to take over variables from an existing software without any changes in the object dictionary.
The high degree of scalability of the POWERLINK Library is of particular importance for devices with limited resources. On one hand, this is achieved by the modularity in individual service groups, and on the other hand, through the use of compiler directives in the respective modules. Thus, the code size is proportional to the utilized POWERLINK services.

Delivery of the POWERLINK Library comprises different example programs that describe the usage of the various POWERLINK services. All examples contain a complete implementation of a POWERLINK device including the object directory as well as application code. These are ready to be compiled and run.

Among the detailed documented source code there is the reference manual and a printed user manual as documentation available.

The POWERLINK Library is constantly improved and adopted to customer requirements. In order to keep up with the latest version of the POWERLINK Library port provides its customers an update service.

For development, test and initial operation of POWERLINK devices port provides a comprehensive tool chain. The creation of the object directory is simplified with the POWERLINK Design Tool (POWERLINK Design Tool Light version belongs to the scope of delivery).

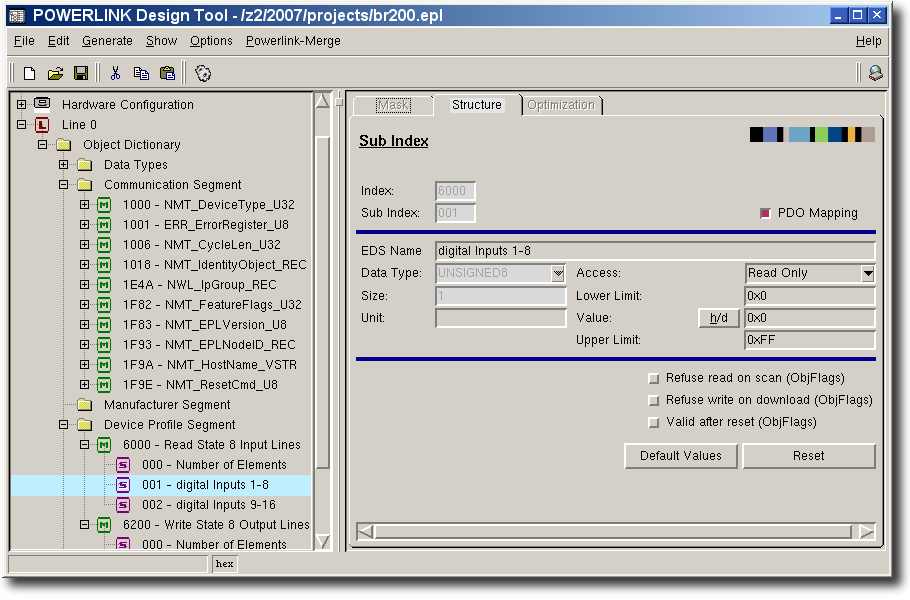

The graphical POWERLINK Design Tool is available for the creation of the object directory, the electronic data sheet (EDS file in XML format) and for the documentation of the device in HTML or text format.

The POWERLINK Device Monitor can be utilized for commissioning, but also for the implementation and test phase.

For the development of POWERLINK application monitoring and analyzing the POWERLINK bus traffic is essential. The service oriented display of POWERLINK messages of the POWERLINK-REport allows easy and quick interpretation of POWERLINK messages.

Besides the communication objects several application objects in different device profiles are also specified in POWERLINK. These definitions guarantee a defined behavior of the corresponding device class and enable the interchangeability of POWERLINK devices. Device profiles can be easily created by use of the POWERLINK Design Tool.
