The Display can be connected to user application or network via the following hardware communication interfaces:
• RS232/RS485
• CAN
• Ethernet
More communication interfaces are available on request as options:
• Profibus
• Profinet (*)
• Ethernet PowerLink (*)
• EtherCAT (*)
RGB Display is supported by a wide choice of development tools
KEIL MDK-ARM with TÜV Qualified (*) Arm C Compiler and long term maintenance
http://www2.keil.com/mdk5/safety
Embedded Wizard Graphic Library from TARA Systems
http://www.embedded-wizard.de/
(*) Arm C/C++ Compiler is TÜV qualified for Safety Critical applications
IEC 61508 for electrical systems
ISO 26262 for automotive industry
IEC62304 for medical systems
EN 50128 for railway applications
http://www2.keil.com/mdk5/safety
Embedded Wizard Graphic Library from TARA Systems
http://www.embedded-wizard.de/
(*) Arm C/C++ Compiler is TÜV qualified for Safety Critical applications
IEC 61508 for electrical systems
ISO 26262 for automotive industry
IEC62304 for medical systems
EN 50128 for railway applications
CHARACTERISTICS
• 24 V power supply with RF filter
• CPU - 32 bit Arm Cortex-M7
o STM32F767 @216 MHz
o 2 MB Flash
o 1 MB RAM

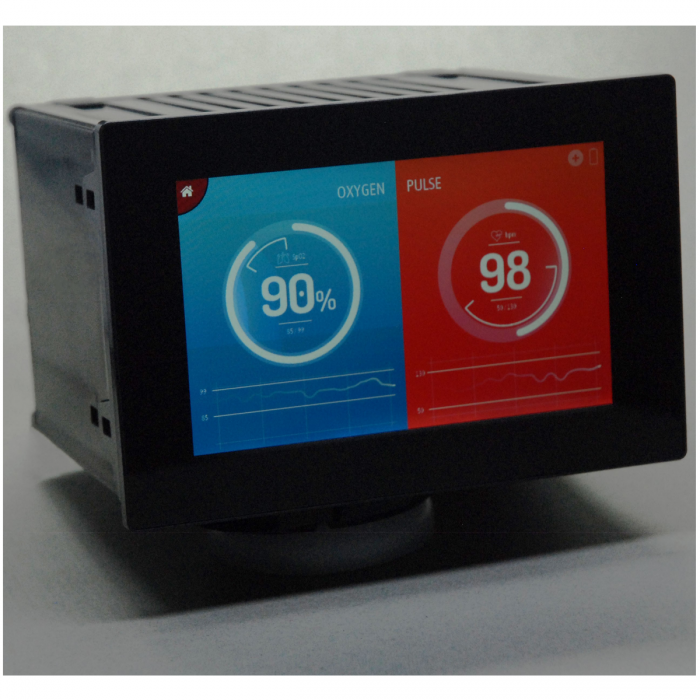

• 5.5” RGB Display 800x480
• Capacitive Touch Screen (ST1633I)
• 1 x Micro SD-CARD
• 1 x Lithium cell for RAM backup
• Expansion connectors for analog and digital I/O
COMMUNICATION INTERFACES
• 1 x RS232/RS485 optoisolated serial
• 1 x CAN bus optoisolated
• 1 x 10/100 Mbit/s Ethernet
• 1 x USB OTG for PC connection and USB pen drive read/write.
CERTIFICATIONS
• CE
• UL
OPERATING TEMPERATURE (Display)
-20…+70 °C
DIMENSIONS
• Plastic frame 144 x 96 x 100 mm.
Options and Expansions
Industrial Ethernet EXPANSION
• EtherCAT
• Profinet
• Ethernet/IP
• Ethernet PowerLink
Other expansions on request
Tecnologix offers support which is directly handled by development team. Do not hesitate to get in touch with our experts.
