SEGGER Flasher DSK

Overview

A new memory device ­– such as the internal flash memory of a microcontroller or external rewritable non-volatile memory – usually requires a flash loader for programming. While SEGGER is continuously updating its Flasher software for new devices, some devices may have not yet been added. To enable customers to fill in the gaps on their own, the Flasher DSK is offered. With the Flasher Device Support Kit, customers can create Flasher Device Packs and an installer to distribute their Flasher Device Packs.

Key features

• Enables high speed programming of devices not yet added to the support database
• Available for cores not yet supported by Flasher

Most flexible programmer

With the Flasher DSK, all customers can ensure that their production setup will work with any target memory they choose. They only need one programmer for all setups. As Flasher programmers can be quickly set up for different tasks, reconfiguring a production line with the Flasher family is a breeze.

Flasher Device Packs

Flasher Device Packs define how to handle target devices while programming. They can include a RAM Code, firmware calls and device-specific initialization.

Writing Flasher Device Packs using the Flasher DSK gives customers access to the Flasher firmware API and device definition attributes. Programming can be set up to use the standard interfaces such as JTAG, SPI, UART and SWD as well as FINE, SWIM, PDI, I²C, ISP, bitbanging and more. The hardware interface is specified so that one pin is for input and seven pins can be used for any I/O operation.

The Flasher DSK includes device definition templates, the API documentation for the Flasher firmware, as well as documentation for device definition and an installer. The J-Link DSK is also included.

Third-party device additions

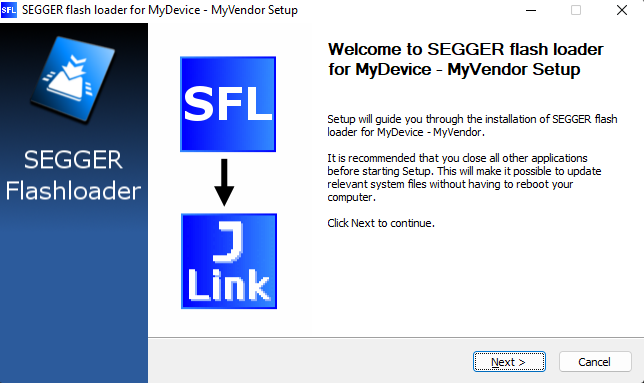

Silicon vendors or project managers who have device support files for new devices may require a way to distribute the files that include the support. The files can either be copied to the end user's hard drive or added by simply running an installer. The Flasher DSK comes with a template for an installer, that sets this up within Microsoft Windows.
