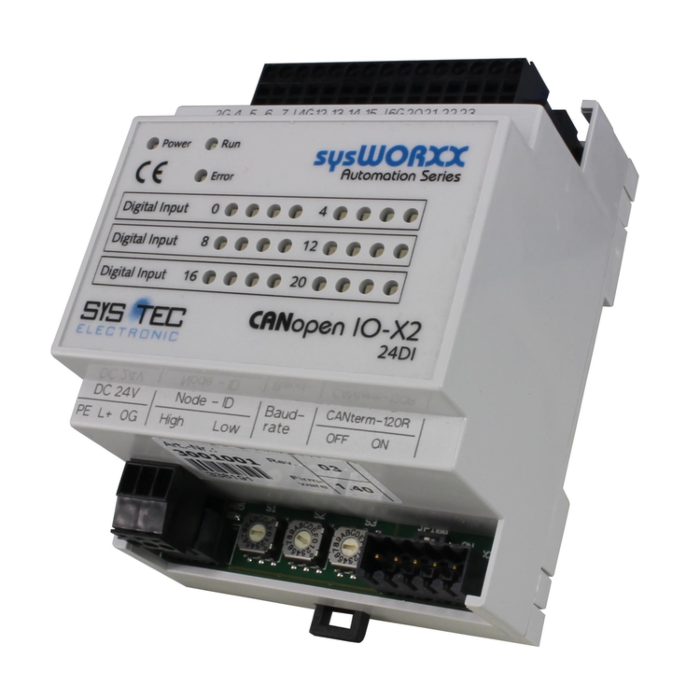

The CANopen IO-X2 is a very compact and cost effective CANopen IO module featuring a high-density of industrial proven I/O's.
The module includes a CPU-core including the pre-programmed firmware for CANopen communication and peripherals for the industrial inputs and outputs. Extensive diagnostic routines are implemented to ensure a most reliable and safe operation.
All inputs and outputs as well as configuration parameters are accessible via the CANopen protocol.
The CANopen IO-X2 is a CANopen slave device according CANopen device profile CiA 401 V2.1 and CANopen communication profile CiA 301 V4.02.
Two LED indicate the device state according to CiA 303-3 V1.0.
Continua
| Physical | |
Size (LxWxH) | 95x70x58mm |
| Operating Temperature | -20 to +70°C |
Storage Temperature | -20 to +90°C |
| Humidity | 10 to 95% non-condensing (VDE 0110) |
| Weight | ca. 130g |
Installation Method | DIN-rail mounting |
| Enclosure Protection Class | IP20 |
Power Supply | |
Operating Voltage | 24V ± 20% |
| Current Consumption | < 70mA |
| I/O Interfaces | |
Digital Inputs 24 VDC | 24 (galvanic isolated in groups of 4 inputs) |
| Visualisation | |
| Status LEDs | Power |
| Error | |
| Modul status | |
| I/O Status | |
| and others | |
Particularities | |
| CAN/CANopen | CANopen device according to CiA 401 V2.1 |
Galvanic isolated CAN bus interface | |
CAN bus termination (120 Ohm resistor) via Jumper | |
| Others | Non-volatile storage of configuration data |
Watchdog |
• Communication profile according to CiA 301 V4.02
• Device profile according to CiA 401 V2.1
• State indicators according to CiA 303-3 V1.0
• Layer Setting Service (LSS) according to CiA 305 V1.1
• 2 TPDO
• Dynamic PDO-Linking and Mapping
• SDO-Server
• Life guarding, Node guarding, Heartbeat Producer
• Emergency Producer
• Minimum Boot-up capability (Slave)
• Minimum NMT boot-up master (Manufacturer extension)
• Jumper for CAN-bus termination 120 Ohm
• Hex-encoding switches for setting node–ID and baud rate
• CAN-bus bitrate: 10kBit/s to 1Mbit/s
• High-quality connectors: (included in scope of delivery)
• Internal monitoring and diagnostics of: onboard temperature, power supply, memory and other controller internals
• Device profile according to CiA 401 V2.1
• State indicators according to CiA 303-3 V1.0
• Layer Setting Service (LSS) according to CiA 305 V1.1
• 2 TPDO
• Dynamic PDO-Linking and Mapping
• SDO-Server
• Life guarding, Node guarding, Heartbeat Producer
• Emergency Producer
• Minimum Boot-up capability (Slave)
• Minimum NMT boot-up master (Manufacturer extension)
Communication and device configuration:
• Galvanic decoupled CAN-bus driver supports up to 110 CAN-nodes on one bus• Jumper for CAN-bus termination 120 Ohm
• Hex-encoding switches for setting node–ID and baud rate
• CAN-bus bitrate: 10kBit/s to 1Mbit/s
• High-quality connectors: (included in scope of delivery)
- Power-Supply: 2-pin plug connector
- CAN-bus: 5-pin plug connector
- I/O: single 30-pin plug connector, lockable
• Internal monitoring and diagnostics of: onboard temperature, power supply, memory and other controller internals
Emergency Messages sent out in case of failure
| P / N | Description |
3001001 | CANopen IO-X2, Standard version |
