1-2 x CAN (High-Speed)

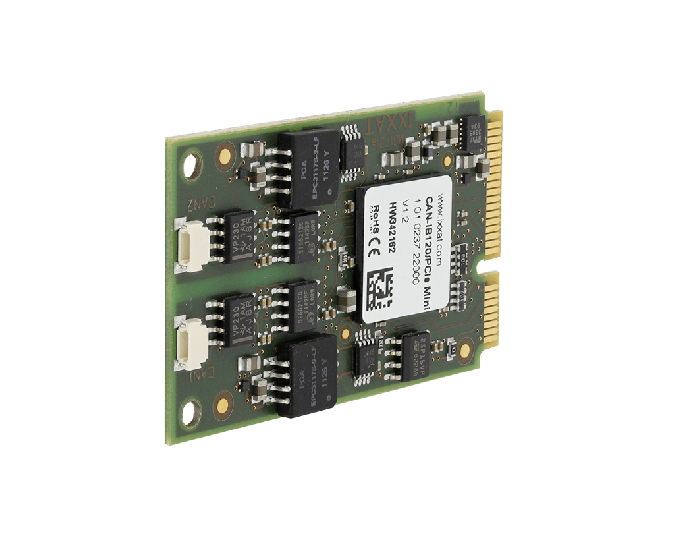

With the CAN-IB120/PCIe Mini IXXAT offers an interface board specially designed for applications which require the implementation of a CAN interface with minimum space requirements.
The CAN-IB120/PCIe Mini is available with one or two optional galvanic isolated high-speed CAN interfaces.
For the connection to the PC, IXXAT delivers the card with its proven VCI driver for Windows 2000, XP, Vista and Windows7. The driver supports all interfaces on the card and allows their usage with customer specific programs or with the analysis and configuration tools from IXXAT. The VCI driver also supports all other PC interfaces offered by IXXAT, which enables the user to easily switch the type of interface without any adaptation of the customer application.
| PC bus interface | PCI Express Mini Card (V1.2) |
| PC address range | Plug & Play |
| Interrupts | Plug & Play |
| CAN interface | 1 or 2 CAN interfaces; CAN 2.0 A/B; galvanic isolation (1 kV, 1 sec.) |
| Power supply | 3.3 V DC |
| Temperature range | -40 ºC ... +85 ºC |
| Certification | CE, FCC |
| Size | 30 × 50.95 mm |
• Economically priced passive board (no microprocessor on board)
• Extremely compact design
• Up to two CAN channels
• Optional galvanic isolation of the CAN interface
• Uniform driver packages support all IXXAT CAN and CAN-FD interfaces and allow easy change of the PC interface type
• Powerful programming interface for Windows "VCI" as well as "ECI" for Linux, QNX, RTX, INtime and VxWorks
| CAN ports | Galv. iso. | Order numbers | Additional information |
|---|---|---|---|
| 1 | - | 1.01.0237.11000 | CAN socket aligned to the end of the card (back entry) For new developments we recommend using IXXAT CAN-IB520/PCIE MINI Passive CAN FD Interface for PCI Express Mini >> |
| 1 | X | 1.01.0237.12000 | CAN socket aligned to the end of the card (back entry) For new developments we recommend using IXXAT CAN-IB520/PCIE MINI Passive CAN FD Interface for PCI Express Mini >> |
| 1 | X | 1.01.0237.90001 | CAN socket facing upwards (top entry) Bulk version: Without driver CD, without manual and without individual packaging |
| 2 | - | 1.01.0237.21000 | CAN socket aligned to the end of the card (back entry) |
| 2 | X | 1.01.0237.22000 | CAN socket aligned to the end of the card (back entry) |
| 2 | X | 1.01.0237.90002 | CAN socket facing upwards (top entry) Bulk version: Without driver CD, without manual and without individual packaging |
